Forged steel gate valves

Application standards

1. Design and manufacture conform to API 602, BS5352 ,ANSI B16.34;
2. Connection ends conform to
   1. Socket welded dimension conform to ANSI B16.11 , JB/T1751
   2. Screw ends dimension conform to ANSI B1.20.1 , JB/T7306
   3. Butt-welded ends conform to ANSI B 16.25 , JB/T12224
   4. Flanged ends conform to ANSI B16.5 , JB79
3. Test and inspection conform to: API598 , GB/T13927 , JB/T9092

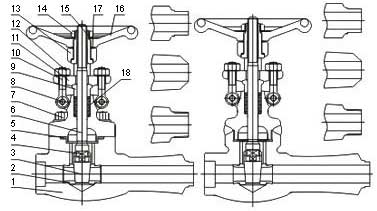

4. Structure features:
   Bolted bonnet , outside screw and yoke
   Welded bonnet , outside screw and yoke
5. Materials conform to ANSI/ASTM
6. Main materials:
   A105 , LF2 , F5 , F11 , F22 , 304(L) , 316(L) , F347 , F321 , F51 , Monel , 20 Alloy

Carbon steel temperature-pressure rate

CL150 - 285 P.S.I @ 100^oF
CL300 - 740 P.S.I @ 100^oF
CL600 - 1480 P.S.I @ 100^oF
CL1500 - 3705 P.S.I @ 100^oF
