Forged steel globe valves

Female threaded and socket welded globe valves

Female threaded and socket welded globe valves       Female threaded and socket welded globe valves

Female threaded and socket welded globe valves

Application standards

  1. Design and manufacture conform to BS5352 , MSS SP - 118;
  2. Connection ends conform to
    1. Socket welded ends conform to ANSI B16.11 , JB/T1751
    2. Screw ends conform to ANSI B1.20.1 , JB/T7306
    3. Butt-welded ends conform to ANSI B 16.25 , JB/T12224
    4. Flanged ends conform to ANSI B16.5 , JB79
  3. Test and inspection conform to: API598 , GB/T13927 , JB/T9092
  4. Structure features:
    Bolted bonnet , outside screw and yoke,
    Welded bonnet , outside screw and yoke.
  5. Materials conform to ANSI/ASTM
  6. Main materials:
    A105 , LF2 , F5 , F11 , F22 , 304(L) , 316(L) , F347 , F321 , F51 , Monel , 20 Alloy

Carbon steel temperature-pressure rate

CL150 - 285 P.S.I @ 100oF
CL300 - 740 P.S.I @ 100oF
CL600 - 1480 P.S.I @ 100oF
CL800 - 1975 P.S.I @ 100oF
CL1500 - 3705 P.S.I @ 100oF

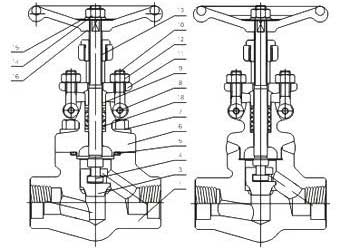

Main part materials list

No. Part name A 105/F6a A105/F6aHFS LF2/304 F11/F6aHF F304(L)
304(L)
F316(L)
316(L)
F51
F51
1 Body A105 A105 + HF LF2 F11 + HF F304(L) F316(L) F51
3 Disc F6a F6a F304 F6aHF F304(L) F316(L) F51
4 Stem 410 410 304 410 304(L) 316(L) F51
5 Gasket 304+
Flexible graphite
304+
Flexible graphite
304+
Flexible graphite
304+
Flexible graphite
304+
Flexible graphite
316+
Flexible graphite
316+
Flexible graphite
6 Bonnet A105 A105 LF2 F11 F304(L) F316(L) F51
8 Pin 410 410 410 410 304 304 304
9 Gland 410 410 304 410 304 316 F51
10 Gland eyebolt B7 B7 L7 B16 B8(M) B8(M) B8M
11 Gland flange A105 A105 LF2 F11 F304 F304 F304
12 Hex nut 2H 2H 2H 2H 8(M) 8(M) 8M
13 Stem nut 410 410 410 410 410 410 410
14 Locking nut 35 35 35 35 35 35 35
15 Nameplate AL AL AL AL AL AL AL
16 Handwheel A197 A197 A197 A197 A197 A197 A197
18 Packing Graphite Graphite Graphite Graphite Graphite Graphite Graphite
